Product Publish Video Coming Soon!!!

Advanced high-performance hardware

Compact and lightweight

Each tracker weighs : < 19g

Low power consumption, extended battery life

Up to 30 hours with 300mah battery

High-precision sensors

Consumer Pricing, Industrial-Grade Calibration

Node replacement:
allowing idle sensors to be
repurposed.

Skeleton adjustments:
Adjustable Skeleton Parameters
One-Click Import & Adapt

Motion Record & Export:
Support multiple data formate
FBX | BVH | DAE | REBO_ANIM

Simultaneous Multi-Device

Standard Edition: 2 free channels included
Commercial Edition (In Schedule): Scale to 10 channels for group motion capture

PC Mode Supports

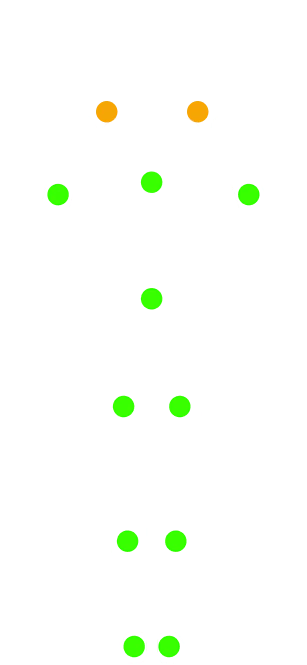

Full Body Mode
For animation, Vtuber, PC Games, Motion Analysis, etc.
Full Body With Shoulder Replace
For animation, Vtuber, PC games, etc.
Full Body Without foot
For animation, Vtuber, PC games, etc.
Upper Body Mode
For Vtuber
Upper Body Mode With Shoulder Replace
For Vtuber
Single Arm Mode
Single Arm Mode For Motion Analysis
6 Point Mode
Coming In The Future

VR Mode Supports

12 Points
Most Precision
10 Points
Higher Precision
8 Points
Balanced
6 Points
More Convenience
5 Points
Most Convenience Currently
4 Points
Coming In The Future
3 Points
Coming In The Future

Powered by Proprietary AI Technology

Multi-protocol and software compatibility

Native SteamVR Tracking

Emulates Vive Trackers at software level. Optimized for solo creators, compatible with most SteamVR games supporting Vive Trackers including VRChat and NeosVR.

VMC Protocol (Industry Standard)

The de facto broadcasting protocol for VTubers. Directly integrates with major tools - VSeeFace, Warudo, Webcam Motion Capture, and 3D software via plugins like Blender VMC Connector.

WebSocket SDK Ecosystem

Full-stack solution for developers: Reference implementations for Blender/Unity/Unreal plugins, or build custom integrations using multi-language SDKs (C++/C#/Python). RAW motion data API enables biomechanics analysis and AI training pipelines.

Dedicated plugins developed for
multiple 3D software

Ultra-low CPU usage: Most computers use less than 1% CPU, freeing up performance for other software!

(3D preview must be disabled)

Proprietary integrated hardware
and software system

Community

Tutorial

Fan Videos

Future Plans
(listed in no particular order)

Optical-inertial hybrid motion capture.(support like vive tracker)
Optimized IK for enhanced stability.
Supports MMD skeleton import and MMD export, eliminating the need for additional conversion.
Supports Mixamo skeleton import
Adds VR 3-point and 4-point tracking modes.
Adds PC 6-point tracking mode.
Adds Mini UI mode to further reduce resource usage.
Mores In Coming...

Hardware Specification

Rebocap Sensor Specs

Output Data Formate:	Quaternion	Sensor Weight:	< 19g
Battery Capacity:	300mAh	Tracker Size:	40x28x17 mm
Static Pitch and Roll Accuracy:	±0.5 degrees	Yaw Accuracy:	±1.5 degrees
Wireless Frequency:	2.4GHz	Acceleration Range:	±8g
RF Output Power:	10dBm	Angular Velocity Range:	±2000dps
Measurement and Wireless Delay:	< 20ms	LED Color:	RGB
Attitude Measurement Range:	360° (three-axis)	Operating Temperature:	0°C-40°C
Max Update Rate:	60fps	Internal Sampling Rate:	>1500Hz
Power Supply:	Single Polymer Lithium Battery	Charging Voltage:	4.3~5V
Operating Time:	≥30 hours	Operating Current:	~10mA
Charging Time:	~2 hours	Interface Type:	Gold-plated Contacts
Communication Range: (depends on environment and wirless interference)	50m(Indoor) 200m(Outdoor)	Wireless Protocol:	Proprietary

Rebocap Charging Box Params

Weight:	~350g	Input Voltage:	12V
Dimensions:	260x80x63.4mm	Output Voltage:	4.5V
Power Adapter:	12V 2A	Power Interface:	DC005-21
Charging Slots:	15	Charging Current:	170mA (per slot)
Charging Slot Pins:	Gold-plated Contacts
